Motor Driver
QUAD MOTOR DRIVE IC (DUAL STEPPING MOTOR DRIVER)
| Motor Type | Full bridge Quad motor driver (2 stepping motor) |
|---|---|
| Function | TTL compatible input circuits, Quad bridge driver |
| Output Configuration | Quad H-bridge drivers |
| Interface | PWM |
| Application | Refrigerator Damper motor Actuators, Printer, Scaner, Robotics |
| Iout(A) | 400mA |
| Vin Max(V) | 17 |
| Mounting Type | SMD |
| Package | eTSSOP-20 |
| status | Mass |

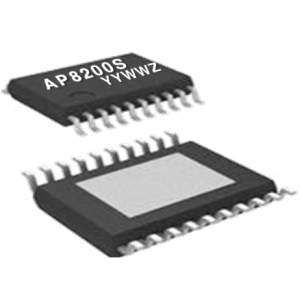

The AP8200 is Dual Stepping motor driver IC.
It consists of TTL compatible input circuits,quad bridge
driver outputs with flyback diodes, and stand-by mode circuit.
